[Flutter] 플러터 Row로우 Column컬럼 정렬 정리

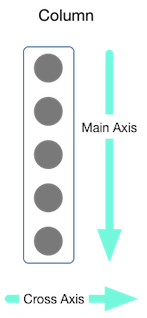

- 행(Row)의 경우 주축은 가로를 기준으로 한다.

- 열(Column)의 경우 주축은 세로를 기준으로 한다.

dartpad.dartlang.org/

위의 사이트에서 아래의 소스를 확인 할 수 있다.

import 'package:flutter/material.dart';

void main() => runApp(ContainerExample());

class ContainerExample extends StatelessWidget {

  static const String _title = 'Container';

  @override
  Widget build(BuildContext context) {

    return MaterialApp(

      title: _title,

      debugShowCheckedModeBanner: false,

      home: Scaffold(

        appBar: AppBar(title: Text(_title)),
        body: Center(
          child:
            Column(
              children: <Widget>[
                Row(
                  mainAxisAlignment: MainAxisAlignment.start, //왼족 위 부터 정렬
                  children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                  ],
              ),
              Row(
                mainAxisAlignment: MainAxisAlignment.end, //오른쪽 아래 부터 정렬
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
              Row(
                mainAxisAlignment: MainAxisAlignment.center, //중앙 정렬
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
              Row(
                mainAxisAlignment: MainAxisAlignment.spaceEvenly, //영역을 고르게 정렬
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
              Row(
                mainAxisAlignment: MainAxisAlignment.spaceAround, //앞,뒤 영역을두고 사이에 배치
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
              Row(
                mainAxisAlignment: MainAxisAlignment.spaceBetween, //start, end 사이에 고르게 배치
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
              Row(
                children: <Widget>[
                  returnWidget(color: Colors.red, width: 100, height: 100),
                  returnWidget(color: Colors.blue, width: 100, height: 100),
                  returnWidget(color: Colors.yellow, width: 100, height: 100)
                ],
              ),
            ]
          )
        )
      )
    );
  }
}

Widget returnWidget({Color color, double width, double height}) {
  return Container(
    color: color,
    width: width,
    height: height,
    padding: const EdgeInsets.all(8.0),
    margin: const EdgeInsets.all(8.0),
  );
}

MainAxisAlignment 가 세로축 정렬이였으면 CrossAxisAlignment 는 가로축 정렬 속성이다.

 - mainAxissize : 세로방향 사이즈 지정(max, min)

- verticalDirection: 세로방향에서의 children 정렬 방향을 지정(up, down ; down이 default value)

 - mainAxisAlignment : Column 내 세로 방향에서의 children간의 간격을 지정(start, end, center, spaceAround, spaceBetween, SpaceEvenly)

 - crossAxisAlignment : Column 내 가로 방향에서의 children간의 간격을 지정(start, end, center, spaceAround, spaceBetween, SpaceEvenly)

 - Row에서는 mainAxis가 가로 방향, crossAxis가 세로 방향.

 - column에서 crossAxisAlignment를 제대로 사용하기 위해서는 column내 children의 width를 정해주거나 최대로 지정해주어야 함.(기본적으로는 최소의 children width만 차지하기 때문에 crossAxisAlignment의 효과가 나타나지 않음.) ; column의 height나 width를 지정할 수는 없음.

 —> children을 그대로 둔 상태에서 crossAxisAlignment의 효과를 나타내려면 다른 child로 invisible container를 만들어주는 방향을 사용할 수 있음.

  Container(

    width: double.infinity,

    height: 10.0,

  )
